Update Checker
Appears in your rotation when a newer AWTRIX NG release exists
| System | AWTRIX NG Scripts |
|---|---|
| Firmware | AWTRIX NG |
| Topic | Miscellaneous |
| Built by | Blueforcer |
| File | v2sWDvY99ZH3.ax · 2.9 KB |
| Icons | — |
| Published | 4 Aug 2026 · updated 4 Aug 2026 |
| Downloads | 15 |
Tells you when a new AWTRIX NG firmware is out - and stays invisible until then.

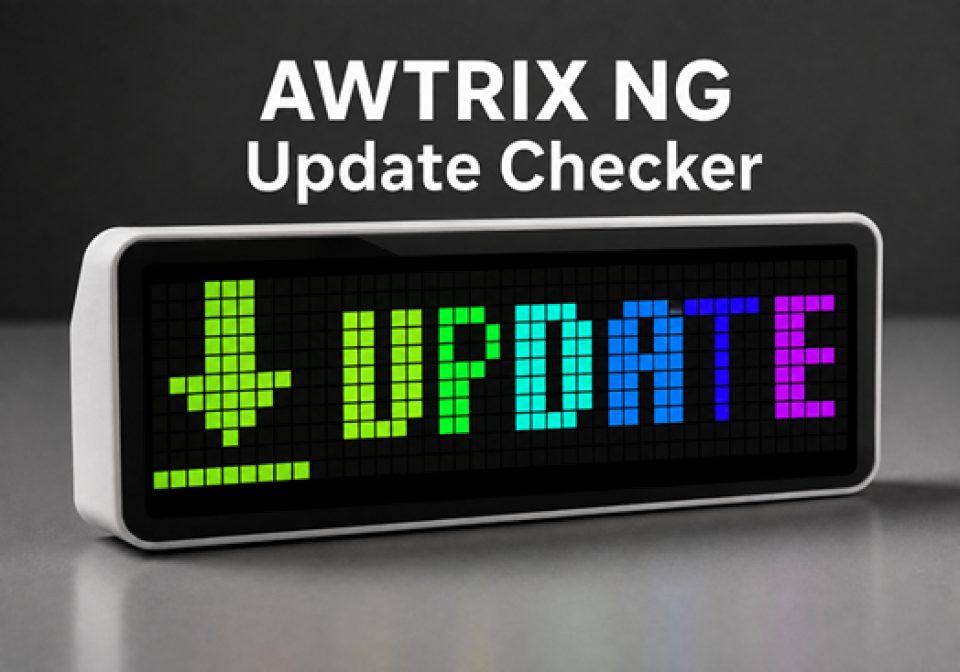

This app compares the firmware running on your panel with the latest AWTRIX NG release on GitHub. When a newer version exists, it joins your rotation and shows a rainbow UPDATE banner with a download arrow. When you are up to date, it skips its turn entirely, so it costs you nothing in the loop.
Nothing to configure. It reads the installed version from the panel itself and checks GitHub once at startup, then every 6 hours.
v2sWDvY99ZH3.ax
# @name UpdateCheck
# @desc Appears only when a newer AWTRIX NG release exists
# @author Blueforcer
# @version 1.0
import string
class UpdateCheck
var installed, latest, ticks, busy
def init()
self.installed = nil
self.latest = nil
self.ticks = 0
self.busy = false
end
# "1.0.13" -> 1000013, so 1.0.9 sorts below 1.0.13. A "-dev" suffix is dropped.
def rank(v)
var d = string.find(v, "-")
if d >= 0 v = v[0 .. d - 1] end
var p = string.split(v, ".")
var n = 0
for i : 0 .. 2
n = n * 1000 + (i < size(p) ? int(p[i]) : 0)
end
return n
end
# Keeps the first run of digits and dots, so "1.0.13\n" and {"version":"1.0.13"}
# both reduce to the bare number.
def digits(s)
var v = ""
for i : 0 .. size(s) - 1
var c = s[i]
if (c >= "0" && c <= "9") || c == "."
v += c
elif v != ""
break
end
end
return v
end
def newer()
if self.installed == nil || self.latest == nil return false end
return self.rank(self.latest) > self.rank(self.installed)
end
# The whole point: no update, no turn in the rotation.
def should_show()
return self.newer()
end
def on_self(body, status)
self.busy = false
log("uc: self st=" + str(status) + " body=" + (body == nil ? "nil" : body))
if body == nil return end
var v = self.digits(body)
if v == "" return end
self.installed = v
end
def on_github(body, status)
self.busy = false
self.ticks = 300 # retry in 5 min unless we parsed something
if body == nil return end
var v = self.digits(body)
if v == "" return end
self.latest = v
self.ticks = 21600 # 6 h only once it actually worked
log("uc: latest=" + v + " newer=" + str(self.newer()))
end
def loop()
if !self.busy && self.ticks <= 0
self.busy = true
if self.installed == nil
self.ticks = 10
http.get("http://localhost/api/v1/version", / b, st -> self.on_self(b, st))
else
self.ticks = 21600
http.get("https://raw.githubusercontent.com/Blueforcer/awtrix-ng/main/version",
/ b, st -> self.on_github(b, st))
end
end
self.ticks -= 1
end
# A download arrow into a tray, 8x8 at the left edge.
def arrow(col)
rect_fill(3, 0, 2, 3, col)
line(1, 3, 6, 3, col)
line(2, 4, 5, 4, col)
line(3, 5, 4, 5, col)
line(1, 7, 6, 7, col)
end
def draw()
clear()
if !self.newer()
text(1, 6, self.installed == nil ? "..." : self.installed, 0x404040)
return
end
var ph = int(now_ms() / 12) % 360
self.arrow(hsv(ph, 100, 100))
var s = "UPDATE"
var x = 9
for i : 0 .. size(s) - 1
x += text(x, 6, s[i], hsv((ph + i * 40) % 360, 100, 100))
end
end
end
return UpdateCheck()
Install it on your AWTRIX NG
Your browser writes the script straight to the device on your network. It joins the app rotation right away.
Some browsers refuse to talk to a device on your network from a public page. Download the flow and paste it into the Scripts tab of your device, or install it from a terminal:
