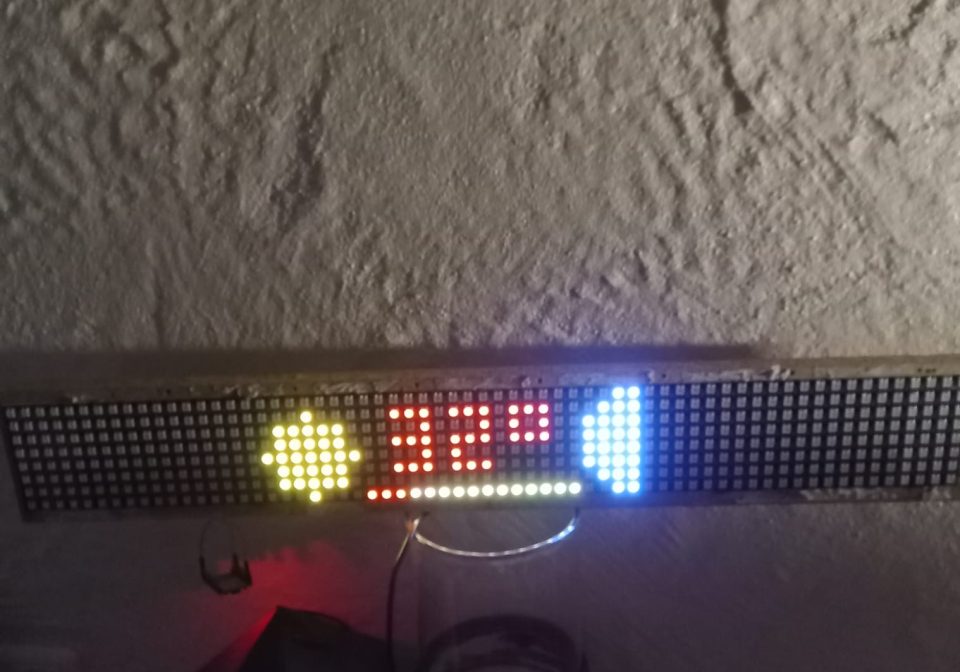

Wetter64
Angepasste Version ( Mittig) für 64x8 Display von Hank_the_Tank
| System | AWTRIX NG Scripts |
|---|---|
| Firmware | AWTRIX NG |
| Topic | Miscellaneous |
| Built by | rockbaer2007 |
| File | lehRd7Gbj0PA.ax · 4.5 KB |
| Icons | — |
| Published | 5 Aug 2026 · updated 5 Aug 2026 |
| Downloads | 3 |
siehe Original von Hank_the_Tank
jetzt bleibt die Anzeige egal welche displaybreite immer mittig
neue Datei angehängt.
lehRd7Gbj0PA.ax
# @name Wetter
# @desc Wetter, 15-Stunden-Prognose und Mondphase, automatisch zentriert
# @author Hank_the_Tank / Codex
# @version 3.5
# @config lat number "Latitude" default=52.52 min=-90 max=90 step=0.0001
# @config lon number "Longitude" default=13.40 min=-180 max=180 step=0.0001
# @config unit select "Temperature unit" default=C options=C,F
class Weather
var st, fc, label, tcol, wic, mic, mday, ticks, age
def init()
self.st = [-12, 0xD977DF, -6, 0x9545BC, -1, 0x4B379C, 0, 0xFEC4FF,
4, 0x31B8DB, 10, 0x31DB8B, 15, 0x6ED228, 21, 0xFFFF28,
27, 0xF87E27, 32, 0xCF3927, 38, 0xA12527]
self.fc = []
self.label = store.get("label")
self.tcol = store.get("col", 0x666666)
self.wic = store.get("icon", "")
self.mic = ""
self.mday = -1
self.ticks = 0
self.age = 9999
end
def on_body(w, status)
if w == nil return end
var m = re.search("_2m\":([-0-9.]+)", w)
var c = re.search("code\":(\\d+)", w)
var h = re.search("_2m\":\\[([^\\]]*)", w)
if m == nil || c == nil || h == nil return end
var t = num(m[1])
if t == nil return end
# i == 0 ist die aktuelle Temperatur, danach die Stundenwerte
var s = self.st
var vals = re.matchall("[-0-9.]+", h[1])
var n = size(vals)
if n > 15 n = 15 end
var fc = []
var i = 0
while i <= n
var v = i == 0 ? t : num(vals[i - 1])
var col = s[1]
if v > s[0]
var j = 0
while j < 20 && v >= s[j + 2]
j += 2
end
if j >= 20
col = s[21]
else
var a = s[j + 1]
var b = s[j + 3]
var f = (v - s[j]) * 1.0 / (s[j + 2] - s[j])
col = rgb(int(a / 65536 % 256 + (b / 65536 % 256 - a / 65536 % 256) * f),
int(a / 256 % 256 + (b / 256 % 256 - a / 256 % 256) * f),
int(a % 256 + (b % 256 - a % 256) * f))
end
end
if i == 0
self.tcol = col
else
fc.push(col)
end
i += 1
end
self.fc = fc
var u = store.get("unit")
if u == "F" t = t * 1.8 + 32 end
self.label = str(int(t + (t >= 0 ? 0.5 : -0.5))) + (u == "F" ? "F" : "°")
var k = int(num(c[1]))
var ic = "36637"
if k == 0 ic = "53386"
elif k <= 2 ic = "2286"
elif k == 3 ic = "53384"
elif k <= 48 ic = "17055"
elif k <= 67 ic = "2720"
elif k <= 77 ic = "2289"
elif k <= 82 ic = "49300"
elif k <= 86 ic = "2289"
elif k >= 95 ic = "29839"
end
self.wic = ic
self.age = 0
store.set("label", self.label)
store.set("col", self.tcol)
store.set("icon", ic)
end
def loop()
var d = day()
if d != self.mday
self.mday = d
var mo = month()
var a = int((14 - mo) / 12)
var yy = year() + 4800 - a
var mm = mo + 12 * a - 3
var f = (d + int((153 * mm + 2) / 5) + 365 * yy + int(yy / 4) -
int(yy / 100) + int(yy / 400) - 2483595) / 29.53058867
f -= int(f)
var ic = "2317"
if f < 0.03 || f >= 0.97 ic = "2318"
elif f < 0.22 ic = "2319"
elif f < 0.28 ic = "2320"
elif f < 0.48 ic = "2321"
elif f < 0.52 ic = "2314"
elif f < 0.72 ic = "2315"
elif f < 0.78 ic = "2316"
end
self.mic = ic
end
self.age += 1
if self.ticks <= 0
self.ticks = 300
http.get("http://api.open-meteo.com/v1/forecast" +
"?latitude=" + str(store.get("lat")) +
"&longitude=" + str(store.get("lon")) +
"¤t=temperature_2m,weather_code&hourly=temperature_2m" +
"&forecast_hours=15&timeformat=unixtime&timezone=auto",
/ b, st -> self.on_body(b, st),
{'find': "\"current\":", 'keep': 640})
end
self.ticks -= 1
end
def draw()
clear()
var w = width()
var off = int((w - 32) / 2)
if off < 0 off = 0 end
if self.label == nil
text(off + 6, 6, "...", 0x666666)
return
end
if !icon(self.wic, off, 0)
circle_fill(off + 4, 4, 3, 0xFFCC00)
end
text(off + 9 + int((14 - text_ink_width(self.label)) / 2), 6, self.label, self.tcol)
icon(self.mic, off + 23, 0)
var i = 0
var n = size(self.fc)
while i < n
pixel(off + 8 + i, 7, self.fc[i])
i += 1
end
if self.age > 1200
pixel(w - 1, height() - 1, 0xFF0000)
end
end
def on_button(btn)
if btn == "select" self.ticks = 0 end
end
end
return Weather()
Install it on your AWTRIX NG
Your browser writes the script straight to the device on your network. It joins the app rotation right away.
Some browsers refuse to talk to a device on your network from a public page. Download the flow and paste it into the Scripts tab of your device, or install it from a terminal:
