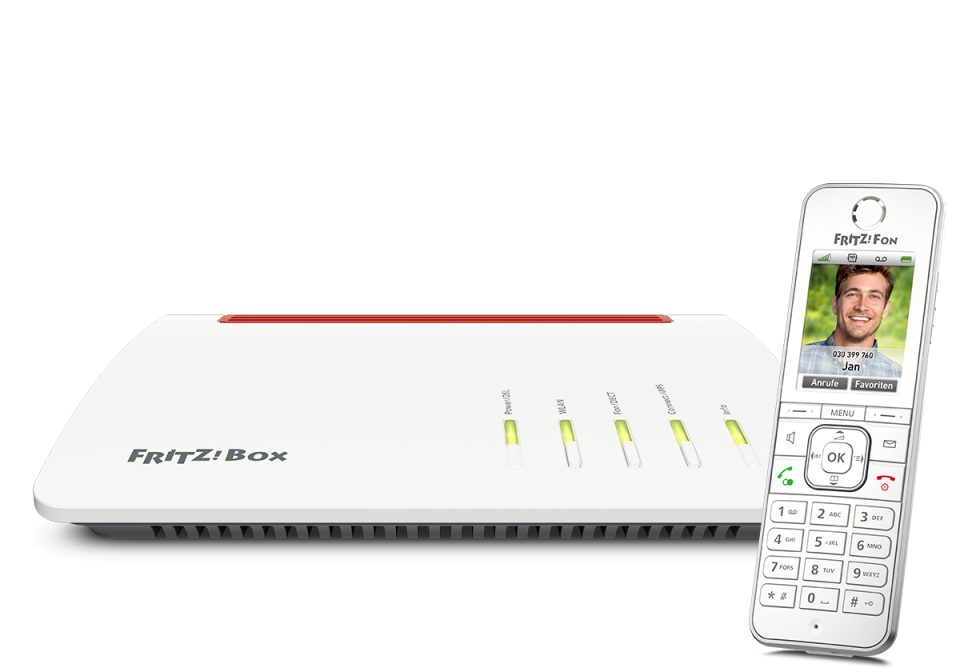

Fritz!Box Incoming Call
Whenever a call is inbound to the Fritz!Box, a notification is shown on the Awtrix.
| System | Node-RED |
|---|---|
| Firmware | AWTRIX 3 |
| Topic | Smarthome |
| Built by | electric-m |
| File | gkVBon3YOn4x.json · 2.5 KB |
| Icons | 1 |
| Published | 22 Dec 2023 · updated 20 Jan 2024 |
| Downloads | 5 |
The Symbol is a ringing phone, the text is the number of the caller.
The Fritzbox Node needs to be properly configured, as well as your own MQTT Server.
Adjust the Awtrix topic to your needing.
The notification would actually repeat 10 times. That is, to keep it up long enough. Conveniently though, when the caller hangs up, the notification is dismissed through the second output.
gkVBon3YOn4x.json
[
{
"id": "73c5d9d0d102eb2a",
"type": "tab",
"label": "Awtrix incoming call",
"disabled": false,
"info": "",
"env": []
},
{
"id": "6d1ba29c2fa36ae8",
"type": "function",
"z": "73c5d9d0d102eb2a",
"name": "create caller-id message",
"func": "var caller = \"\";\n\nif (msg.payload && msg.payload.type === \"INBOUND\") {\n caller = msg.payload.caller;\n\n msg.payload = {\n \"text\": caller,\n \"icon\": 1232,\n \"repeat\": 10,\n \"pushIcon\": 0,\n \"save\": true,\n \"textCase\": 2\n };\n\n return [{ payload: msg.payload }, null];\n} else {\n caller = ''; // or set it to some default value\n msg.payload = \"\";\n return [null, { payload: 1 }]; // Adjust the value as needed for output 2\n}\n\nnode.status({ fill: 'green', shape: 'ring', text: \"Call from\" + ' : ' + caller });\nreturn msg;\n",
"outputs": 2,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 650,
"y": 280,
"wires": [
[
"1eb36040e542b763"
],
[
"a43a9ef28c04d848"
]
]
},
{
"id": "1eb36040e542b763",
"type": "mqtt out",
"z": "73c5d9d0d102eb2a",
"name": "Notify Incoming Call",
"topic": "awtrix_ip/notify",
"qos": "1",
"retain": "false",
"respTopic": "",
"contentType": "",
"userProps": "",
"correl": "",
"expiry": "",
"broker": "",
"x": 900,
"y": 260,
"wires": []
},
{
"id": "a43a9ef28c04d848",
"type": "mqtt out",
"z": "73c5d9d0d102eb2a",
"name": "Dismiss Notification",
"topic": "awtrix_ip/notify/dismiss",
"qos": "1",
"retain": "false",
"respTopic": "",
"contentType": "",
"userProps": "",
"correl": "",
"expiry": "",
"broker": "",
"x": 900,
"y": 320,
"wires": []
},
{
"id": "0630a4323d4ad39e",
"type": "fritzbox-callmonitor",
"z": "73c5d9d0d102eb2a",
"device": "",
"name": "",
"topic": "",
"x": 380,
"y": 280,
"wires": [
[
"6d1ba29c2fa36ae8"
]
]
}
]
These icons belong on the device, in /ICONS. Each one is at
most 32×8
pixels — shown here magnified, at their real proportions.
8×8 px
