blueprint:
  name: ⚽ AWTRIX NG – Fußball Scoreboard ⚽
  author: Hank_the_Tank / AWTRIX NG migration
  description: >-

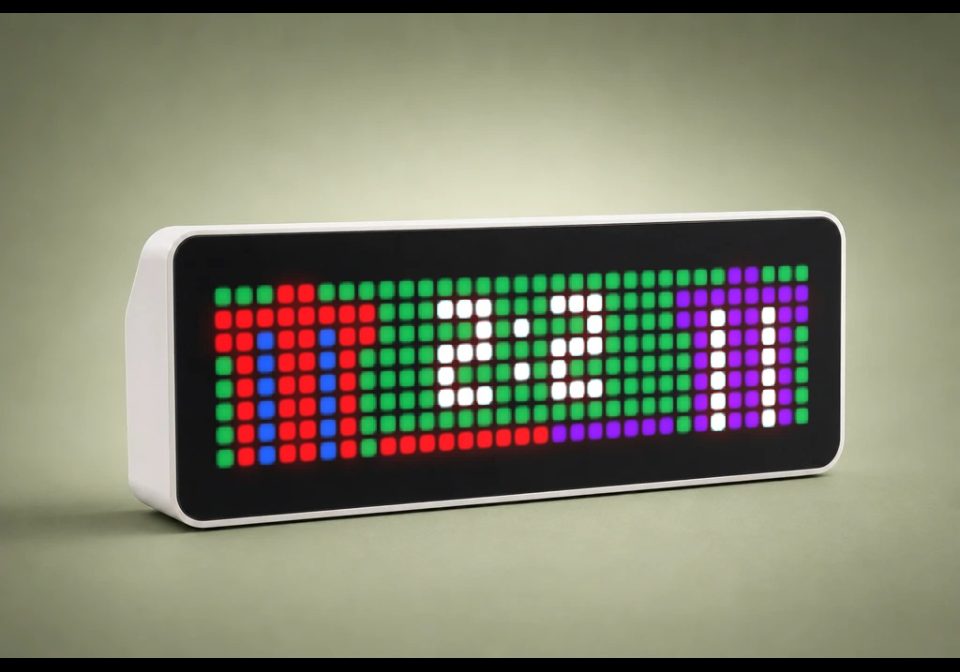

    # Fußball Scoreboard for AWTRIX NG ver. 1.1

    Displays a live football score from the HACS Team Tracker integration on
    one or more AWTRIX NG devices. The colors on the left and right represent
    the home and away teams. The pushed app is shown when the match starts or
    the score changes, and is removed when the match is no longer live.

    ## Requirements

    - Home Assistant 2024.11 or newer
    - MQTT integration
    - AWTRIX NG with Home Assistant discovery enabled
    - HACS Team Tracker integration

  domain: automation

  input:
    awtrix_devices:
      name: AWTRIX NG devices
      description: Select one or more AWTRIX NG devices.
      selector:
        device:
          multiple: true
          filter:
            - integration: mqtt
              manufacturer: Blueforcer
              model: AWTRIX NG

    app_name:
      name: AWTRIX app name
      description: >-
        Unique pushed-app name. Use only letters, numbers, underscores and
        hyphens, with a maximum length of 32 characters.
      default: football_score
      selector:
        text:

    message_duration:
      name: Display duration
      description: How long the scoreboard should remain visible per rotation.
      default: 15
      selector:
        number:
          min: 0
          max: 300
          step: 1
          mode: box
          unit_of_measurement: s

    team_sensor:
      name: Team Tracker sensor
      description: Select the Team Tracker sensor for your team.
      selector:
        entity:

    fallback_team_color_1:
      name: Team fallback color 1
      description: Used as the primary team color when Team Tracker returns black for both colors.
      default: [102, 0, 153]
      selector:
        color_rgb:

    fallback_team_color_2:
      name: Team fallback color 2
      description: Used as the secondary team color when Team Tracker returns black for both colors.
      default: [255, 255, 255]
      selector:
        color_rgb:

mode: restart

triggers:
  - trigger: state
    entity_id: !input team_sensor
    to: IN
    id: game_live

  - trigger: state
    entity_id: !input team_sensor
    to: PRE
    id: game_not_live

  - trigger: state
    entity_id: !input team_sensor
    to: POST
    id: game_not_live

  - trigger: state
    entity_id: !input team_sensor
    to: NOT_FOUND
    id: game_not_live

  - trigger: state
    entity_id: !input team_sensor
    attribute: team_score
    id: score_changed

  - trigger: state
    entity_id: !input team_sensor
    attribute: opponent_score
    id: score_changed

  - trigger: state
    entity_id: !input team_sensor
    attribute: last_play
    id: prediction_changed

variables:
  device_ids: !input awtrix_devices
  app_name: !input app_name
  team_sensor: !input team_sensor
  message_duration: !input message_duration
  fallback_team_color_1_rgb: !input fallback_team_color_1
  fallback_team_color_2_rgb: !input fallback_team_color_2

  fallback_team_color_1: >-
    {{ '#%02X%02X%02X' | format(
      fallback_team_color_1_rgb[0],
      fallback_team_color_1_rgb[1],
      fallback_team_color_1_rgb[2]
    ) }}
  fallback_team_color_2: >-
    {{ '#%02X%02X%02X' | format(
      fallback_team_color_2_rgb[0],
      fallback_team_color_2_rgb[1],
      fallback_team_color_2_rgb[2]
    ) }}

  mqtt_prefixes: >-
    {% set ns = namespace(prefixes=[]) %}
    {% for device_id in device_ids %}
      {% set entities = device_entities(device_id)
        | select('search', 'mqtt_prefix') | list %}
      {% if entities | length > 0 %}
        {% set prefix = states(entities[0]) | trim %}
        {% if prefix not in ['', 'unknown', 'unavailable'] %}
          {% set ns.prefixes = ns.prefixes + [prefix] %}
        {% endif %}
      {% endif %}
    {% endfor %}
    {{ ns.prefixes | unique | list }}

  home_game: "{{ state_attr(team_sensor, 'team_homeaway') == 'home' }}"
  team_colors: >-
    {% set colors = state_attr(team_sensor, 'team_colors') or [] %}
    {% set color_1 = colors[0] | lower if colors | length > 0 else '' %}
    {% set color_2 = colors[1] | lower if colors | length > 1 else '' %}
    {% if color_1 in ['#000000', '000000']
          and color_2 in ['#000000', '000000'] %}
      {{ [fallback_team_color_1, fallback_team_color_2] }}
    {% elif colors | length > 0 %}
      {{ colors }}
    {% else %}
      {{ [fallback_team_color_1, fallback_team_color_2] }}
    {% endif %}
  opponent_colors: >-
    {{ state_attr(team_sensor, 'opponent_colors')
       or ['#FFFFFF', '#808080'] }}

  home_colors: "{{ team_colors if home_game else opponent_colors }}"
  away_colors: "{{ opponent_colors if home_game else team_colors }}"

  home_color_1: >-
    {{ home_colors[0] if home_colors | length > 0 else '#FFFFFF' }}
  home_color_2: >-
    {{ home_colors[1] if home_colors | length > 1 else home_color_1 }}
  away_color_1: >-
    {{ away_colors[0] if away_colors | length > 0 else '#FFFFFF' }}
  away_color_2: >-
    {{ away_colors[1] if away_colors | length > 1 else away_color_1 }}

  prediction_values: >-
    {{ (state_attr(team_sensor, 'last_play') or '')
       | regex_findall('([0-9]+(?:\.[0-9]+)?)%') }}
  team_prediction: >-
    {{ prediction_values[0] | float(0)
       if prediction_values | length >= 2 else 0 }}
  opponent_prediction: >-
    {{ prediction_values[1] | float(0)
       if prediction_values | length >= 2 else 0 }}
  home_prediction: >-
    {{ team_prediction if home_game else opponent_prediction }}
  prediction_pixels: >-
    {% set bar = namespace(items=[]) %}
    {% if prediction_values | length >= 2 %}
      {% set home_width = (home_prediction | float(0) * 16 / 100)
         | round(0) | int %}
      {% set home_width = 0 if home_width < 0
         else 16 if home_width > 16 else home_width %}
      {% for x in range(16) %}
        {% set color = home_color_1
           if x < home_width else away_color_1 %}
        {% set bar.items =
          bar.items + [['pixel', 8 + x, 7, color]] %}
      {% endfor %}
    {% endif %}
    {{ bar.items }}

  home_score: >-
    {{ (state_attr(team_sensor, 'team_score') if home_game
        else state_attr(team_sensor, 'opponent_score')) | default(0, true) }}
  away_score: >-
    {{ (state_attr(team_sensor, 'opponent_score') if home_game
        else state_attr(team_sensor, 'team_score')) | default(0, true) }}

conditions: []

actions:
  - repeat:
      for_each: "{{ mqtt_prefixes }}"
      sequence:
        - choose:
            - conditions:
                - condition: trigger
                  id:
                    - game_live
                    - score_changed
                    - prediction_changed
                - condition: template
                  value_template: "{{ is_state(team_sensor, 'IN') }}"
              sequence:
                - action: mqtt.publish
                  data:
                    qos: 0
                    retain: false
                    topic: >-
                      {{ repeat.item ~ '/cmd/apps/pushed/' ~ app_name }}
                    payload: >-
                      {{
                        {
                          'text': home_score ~ ':' ~ away_score,
                          'textColor': '#FFFFFF',
                          'textCenter': true,
                          'scroll': 'static',
                          'draw': [
                            ['rectFill', 0, 1, 8, 2, home_color_1],
                            ['rectFill', 1, 3, 6, 5, home_color_1],
                            ['line', 3, 0, 4, 0, home_color_1],
                            ['line', 2, 2, 2, 7, home_color_2],
                            ['line', 5, 2, 5, 7, home_color_2],
                            ['rectFill', 24, 1, 8, 2, away_color_1],
                            ['rectFill', 25, 3, 6, 5, away_color_1],
                            ['line', 27, 0, 28, 0, away_color_1],
                            ['line', 26, 2, 26, 7, away_color_2],
                            ['line', 29, 2, 29, 7, away_color_2]
                          ] + prediction_pixels,
                          'durationMs': (message_duration | int) * 1000,
                          'backgroundColor': '#006C28'
                        } | to_json
                      }}

                - action: mqtt.publish
                  data:
                    qos: 0
                    retain: false
                    topic: "{{ repeat.item ~ '/cmd/apps/switch' }}"
                    payload: >-
                      {{ {'name': app_name, 'fast': true} | to_json }}

            - conditions:
                - condition: trigger
                  id: game_not_live
              sequence:
                - action: mqtt.publish
                  data:
                    qos: 0
                    retain: false
                    topic: >-
                      {{ repeat.item ~ '/cmd/apps/pushed/' ~ app_name }}
                    payload: ""
