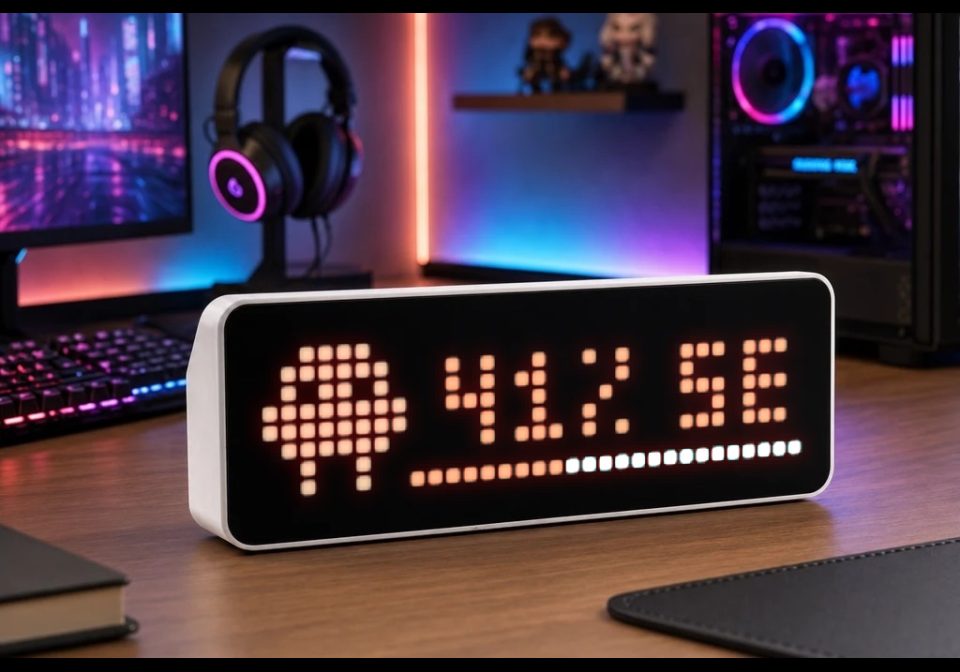

Awtrix NG – Claude Usage Display

blueprint:
  name: "Awtrix NG – Claude Usage"
  description: >
    Displays your Claude usage on an Awtrix NG LED matrix.
    Shows usage percentage with a progress bar, color-coded by thresholds.
    Triggers on Home Assistant start and on a configurable time pattern.
    It uses a custom icon you need to install.
    Rewritten for AWTRIX NG (the successor firmware to AWTRIX 3 / AWTRIX Light) —
    uses the new pushed-app MQTT topic and payload keys.
  domain: automation
  author: "tnusch"
  homeassistant:
    min_version: "2024.6.0"
  input:
    usage_sensor:
      name: Claude Usage Sensor
---
blueprint:
  name: AWTRIX NG - Solar Energy Monitor
  description: >
    This blueprint will show the current solar energy received.

    It uses a icons 54156 (solar-green), 50557 (solar-white-dyn), 50546 (solar-static) that you need to install.

  domain: automation
  input:
    awtrix:
      name: AWTRIX NG Device
      description: Select the Awtrix NG device
      selector:
        device:
          integration: mqtt
          manufacturer: Blueforcer
          model: AWTRIX NG
          multiple: true
    power_source:
      name: Power Sensor
      description: A sensor providing the current power (W) received from your solar system.
      selector:
        entity:
          domain:
            - sensor
          multiple: false
    threshold_high:
      name: Threshold for high solar production (W)
      description: The threshold above which the energy production of your solar system should be visualized as high. Input in Watts (W).
      selector:
        number:
          min: 0
          max: 100000
          unit_of_measurement: Watt
          mode: slider
      default: 400
    threshold_low:
      name: Threshold for low solar production (W)
      description: The threshold below which the energy production of your solar system should be visualized as low. Input in Watts (W).
      selector:
        number:
          min: 0
          max: 100000
          unit_of_measurement: Watt
          mode: slider
      default: 100
    skip_if_zero_watts:
      name: Hide solar production if at 0 Watts
      description: 'This will not show the solar energy production on your AWTRIX NG if the production is below 0 Watts.'
      selector:
        boolean:
      default: false
    skip_during_night_hours:
      name: Hide solar production during night time
      description: 'This will not show the solar energy production on your AWTRIX NG during night hours (as specified below).'
      selector:
        boolean:
      default: false
    night_starts_after_time:
      name: Night Time Start
      description: Set the start of the night time.
      default: 00:00:00
      selector:
        time: {}
    night_ends_after_time:
      name: Night Time End
      description: Set the end of the night time.
      default: 00:00:00
      selector:
        time: {}
mode: single
variables:
  device_ids: !input awtrix
  devices_topics: >-
    {%- macro get_device_topic(device_id) %}
    {{ states((device_entities(device_id) | select('search','device_topic') | list)[0]) }}
    {%- endmacro %}

    {%- set ns = namespace(devices=[]) %}
    {%- for device_id in device_ids %}
      {%- set device=get_device_topic(device_id)|replace(' ','') %}
      {% set ns.devices = ns.devices + [ device ~ '/cmd/apps/pushed/solar_power'] %}
    {%- endfor %}
    {{ ns.devices }}
  power_sensor: !input power_source
  power_level: >-
    {{ states[power_sensor].state | int(0) | abs }}
  threshold_low: !input threshold_low
  threshold_high: !input threshold_high
  power_level_icon: >-
    {%- if power_level > threshold_high %}{{54156}}{%- endif %}
    {%- if (power_level <= threshold_high) and (power_level > threshold_low) %}{{50557}}{%- endif %}
    {%- if power_level <= threshold_low %}{{50546}}{%- endif %}
  power_level_color: >-
    {%- if power_level > threshold_high %}{{"#04FE04"}}{%- endif %}
    {%- if (power_level <= threshold_high) and (power_level > threshold_low) %}{{"#FCFEFC"}}{%- endif %}
    {%- if power_level <= threshold_low %}{{"#FF4E1A"}}{%- endif %}
  power_level_text: >-
    {%- if power_level > 1000  %}{{ ((power_level | float(default=0)) / 1000) | round(1)}} kW{%- else %}{{power_level | round(0)}} W{%- endif %}
  skip_if_zero_watts: !input skip_if_zero_watts
  skip_during_night_hours: !input skip_during_night_hours
  payload: >-
    {"icon":"{{ power_level_icon }}","text":"{{ power_level_text }}","textColor":"{{ power_level_color }}"}
  night_start: !input night_starts_after_time
  night_end: !input night_ends_after_time

trigger:
  - platform: time_pattern
    minutes: "/1"

condition:
action:
  - choose:
    - alias: "Skipping"
      conditions:
      - condition: template
        value_template: >
          {% set now_time = now().strftime("%H:%M") %}
          {% set night_start = night_start %}
          {% set night_end = night_end %}
          {{ (skip_during_night_hours and ((now_time < night_end) or (now_time > night_start))) or (skip_if_zero_watts and (power_level == 0)) }}
      sequence:
        # It is night time, skipping sending solar power data to AWTRIX NG.
      - repeat:
          for_each: "{{ devices_topics }}"
          sequence:
            - service: mqtt.publish
              data:
                qos: 0
                retain: false
                topic: "{{ repeat.item }}"
                payload: '{}'
    - alias: "Not skipping"
      conditions:
      - condition: template
        value_template: >
          {% set now_time = now().strftime("%H:%M") %}
          {% set night_start = night_start %}
          {% set night_end = night_end %}
          {{ not((skip_during_night_hours and ((now_time < night_end) or (now_time > night_start))) or (skip_if_zero_watts and (power_level == 0))) }}
      sequence:
      - repeat:
          for_each: "{{ devices_topics }}"
          sequence:
            - service: mqtt.publish
              data:
                qos: 0
                retain: false
                topic: "{{ repeat.item }}"
                payload: >
                  {{ payload }}
      description: >
        Sensor that provides your Claude (weekly or session) usage as a percentage (0–100),
        e.g. via https://github.com/trickv/hass-claude-usage
      selector:
        entity:
          domain: sensor
    awtrix:
      name: AWTRIX Device
      description: Select the AWTRIX device
      selector:
        device:
          filter:
            - integration: mqtt
              manufacturer: Blueforcer

    app_name:
      name: AWTRIX Application name
      description: This is the app name used in the pushed-app MQTT topic - it should be unique
      selector:
        text:
      default: claude_usage

    icon_id:
      name: Awtrix Icon ID
      description: >
        Icon number pre-loaded on your Awtrix for Claude.
        The same 8x8 icon IDs from AWTRIX 3 still work on AWTRIX NG.
        Find out more about icons on https://blueforcer.github.io/awtrix-ng/guides/icons/.
      default: "74725"
      selector:
        text:

    suffix_text:
      name: Suffix to display
      description: Suffix to be displayed on AWTRIX to indicate usage type (e.g. "wk" for weekly, "se" for session)
      selector:
        text:
      default: "wk"

    base_color:
      name: Base Text & Progress Color
      description: >
        Hex color (without #) used for the text and progress bar (default as Claude brand color).
      default: "DE7356"
      selector:
        text:

    threshold_warn:
      name: Warning Threshold (%)
      description: >
        Usage above this percentage → yellow text color.
      default: 50
      selector:
        number:
          min: 1
          max: 99
          step: 1
          mode: slider

    threshold_high:
      name: High Threshold (%)
      description: >
        Usage above this percentage → red text color.
      default: 80
      selector:
        number:
          min: 1
          max: 99
          step: 1
          mode: slider

    scroll_speed:
      name: Scroll speed
      description: Modifies the scroll speed. Enter a percentage value of the original scroll speed.
      default: 100
      selector:
        number:
          min: 0
          max: 100
          step: 10
          unit_of_measurement: "%"
          mode: slider

    duration:
      name: Duration (in seconds)
      description: Sets how long the app should be displayed, unit is seconds (converted to milliseconds for AWTRIX NG).
      default: 5
      selector:
        number:
          min: 0
          max: 10
          step: 1
          unit_of_measurement: "s"
          mode: slider

    text_case:
      name: Text Case
      description: Select how you would like your text to display.
      selector:
        select:
          options:
            - label: Use global setting
              value: "0"
            - label: Force Uppercase
              value: "1"
            - label: Show as you entered it
              value: "2"
          mode: dropdown
          custom_value: false
          multiple: false
          sort: false
      default: "0"

    push_icon:
      name: Icon Mode
      description: >
        Please select the icon behaviour (AWTRIX NG's iconMode setting):
          - `0`  Icon doesn't move (fixed)

          - `1`  Icon moves with text and will not appear again (pushOnce)

          - `2` Icon moves with text but appears again when the text starts to scroll again (push)
      selector:
        select:
          options:
            - label: Icon doesn't move (default)
              value: "0"
            - label: Icon moves with text and will not appear again
              value: "1"
            - label: Icon moves with text but appears again when the text starts to scroll again
              value: "2"
      default: "0"

triggers:
  - trigger: homeassistant
    event: start
  - trigger: state
    entity_id: !input usage_sensor
    for:
      seconds: 5

variables:
  v_device_id: !input awtrix
  v_sensor:    !input usage_sensor
  v_suffix:    !input suffix_text
  # AWTRIX NG publishes its own MQTT prefix as a sensor entity ("MQTT prefix").
  # We read that first, since it's the value every cmd/state topic actually starts with,
  # and only fall back to the device name if that sensor isn't available yet.
  v_prefix: >-
    {% set e = device_entities(v_device_id) | select('search', 'mqtt_prefix') | list %}
    {% set prefix_state = states(e[0]) if e else 'unavailable' %}
    {{ prefix_state if prefix_state not in ['unknown', 'unavailable', 'none'] else
       iif( device_attr(v_device_id, 'name_by_user') != none, device_attr(v_device_id, 'name_by_user'), device_attr(v_device_id, 'name') ) }}
  v_app:     !input app_name
  v_icon:      !input icon_id
  v_color:     !input base_color
  v_warn:      !input threshold_warn
  v_high:      !input threshold_high
  v_push_icon: !input push_icon
  v_duration: !input duration
  v_text_case: !input text_case
  v_scroll_speed: !input scroll_speed

conditions: []

actions:
  - action: mqtt.publish
    alias: "Publish Claude usage to Awtrix NG"
    data:
      qos: 0
      retain: false
      # AWTRIX NG pushed-app topic: <prefix>/cmd/apps/pushed/<name>
      # (AWTRIX 3 used <prefix>/custom/<name>)
      topic: "{{ v_prefix }}/cmd/apps/pushed/{{ v_app }}"
      payload: >-
        {% set usage = states(v_sensor) | int(-1) %}
        {% set ok = usage >= 0 %}

        {% set text_color = 'FF0000' if usage > v_high
                       else ('FFDE21' if usage > v_warn
                       else v_color) %}

        {% set text = usage ~ '% ' ~ v_suffix if ok else 'N/A' %}

        {% set icon_mode_map = {'0': 'fixed', '1': 'pushOnce', '2': 'push'} %}
        {% set text_case_map = {'0': 'inherit', '1': 'upper', '2': 'asTyped'} %}

        {{ {
          "text": text,
          "iconMode": icon_mode_map.get(v_push_icon, "fixed"),
          "durationMs": (v_duration | int) * 1000,
          "textCase": text_case_map.get(v_text_case, "inherit"),
          "scroll": {"speed": v_scroll_speed | int},
          "icon": v_icon,
          "textColor": text_color,
          "progress": usage,
          "progressColor": v_color
        } | tojson if ok else
          {
            "text": "N/A",
            "icon": v_icon,
            "textColor": v_color,
            "progress": 0,
            "progressColor": v_color,
            "durationMs": (v_duration | int) * 1000,
            "scroll": {"speed": v_scroll_speed | int}
          } | tojson }}

mode: restart
