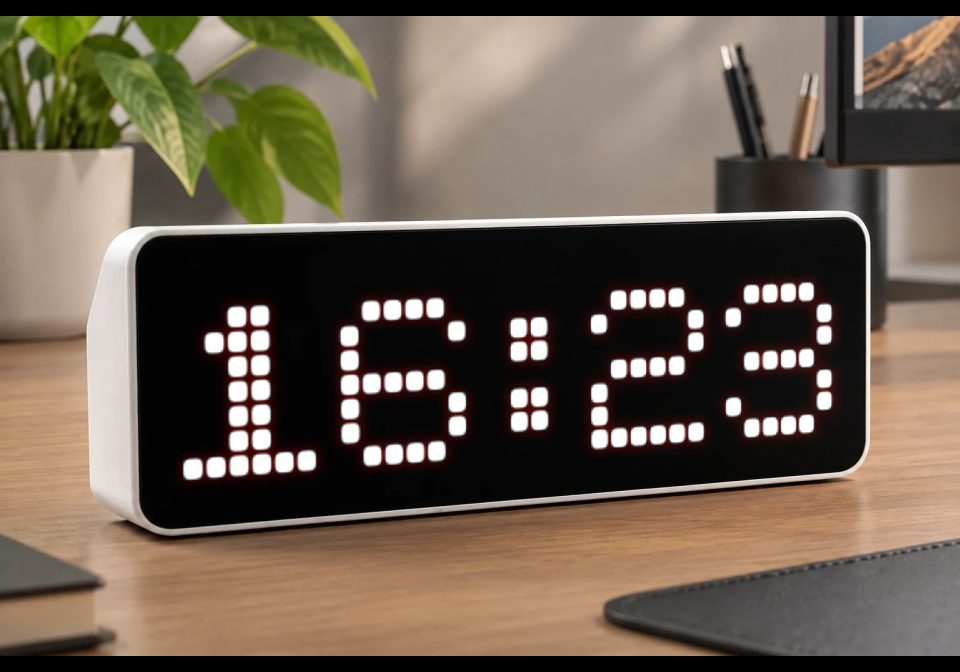

Clock_XL - Customizable Pixel Clock

A large pixel-style HH clock for AWTRIX 3 with customizable color and blinking colon.

Specifications
System	AWTRIX NG Scripts
Firmware	AWTRIX NG
Topic	Miscellaneous
Built by	Avemer
File	RSR2GytEC5Jj.ax · 8.3 KB
Icons	—
Published	9 Aug 2026 · updated 31 Aug 2026
Downloads	71

Install on my AWTRIX… Download flow

Inspired by the work of RobG.

This script uses ideas and implementation approaches from RobG's original nightmode clock.

Update 1.3

Added configurable 12/24-hour time format.
Added configurable Night Mode with custom start and end times.
Added separate day/night clock colors.
Added separate day/night brightness settings.
Added separate day/night automatic brightness settings.
Added option to disable app rotation during Night Mode.
Added automatic handling of night periods that cross midnight (e.g. 23:00 → 08:00).
Added configurable settings through the AWTRIX app configuration interface.
Added support for true / false boolean configuration values.
Improved handling of the 12/24-hour format selection.

Changed:

Clock settings are now changed through the AWTRIX configuration section.
The hour format is selected through the configuration interface:
- 24 — 24-hour format
- 12 — 12-hour format
Night Mode automatically switches between day and night settings without interrupting the clock.
Night Mode remains active after midnight until the configured Night End time.
Improved configuration handling for clock appearance, brightness and rotation.
Boolean settings use standard true / false values.

Update 1.2

Added Night Mode — automatically switches the clock to a separate night configuration during the selected time range.
Configurable Night Schedule — set the start and end time of Night Mode using HH:MM.
Configurable Brightness — separate brightness and automatic-brightness settings for day and night.
Night Clock Color — choose a separate color for the clock during Night Mode.
Night Rotation Control — optionally disable app rotation during Night Mode so the clock stays on screen.
Automatic Rotation Handling — when Night Rotation is enabled, the clock stays visible during Night Mode and normal rotation resumes when Night Mode ends.
Midnight-Crossing Schedule — Night Mode supports periods such as 23:00 → 08:00.

New Settings:

hour_format
Select the clock format from the AWTRIX configuration menu.
24 — 24-hour format
Example: 13:45
12 — 12-hour format
Example: 01:45
blink_colon
Controls whether the : blinks.
true — colon blinks once per second
false — colon stays permanently visible
NIGHT_MODE_ENABLED
true — Night Mode enabled
false — Night Mode disabled
NIGHT_START
Night Mode start time.
Format: HH:MM
Example:
23:00
NIGHT_END
Night Mode end time.
Format: HH:MM
Example:
08:00
NIGHT_CLOCK_COLOR
Clock color used during Night Mode.
Format: RGB hexadecimal color.
Example:
#FF0000
NIGHT_ROTATION_ENABLED
true — disable app rotation during Night Mode
Clock_XL stays on screen.
false — keep normal app rotation
Only the night appearance changes.
Brightness
NIGHT_BRIGHTNESS
Brightness used during Night Mode.
Range: 0–255
DAY_BRIGHTNESS
Brightness used during normal/day mode.
Range: 1–255
Automatic Brightness
NIGHT_AUTO_BRIGHTNESS
true — automatic brightness during Night Mode
false — fixed Night brightness
DAY_AUTO_BRIGHTNESS
true — automatic brightness during normal/day mode
false — fixed Day brightness

Example configuration
hour_format = 24
blink_colon = true
NIGHT_MODE_ENABLED = true
NIGHT_START = "23:00"
NIGHT_END = "08:00"
NIGHT_CLOCK_COLOR = #FF0000
NIGHT_BRIGHTNESS = 1
DAY_BRIGHTNESS = 127
NIGHT_ROTATION_ENABLED = true

FEATURES

Large 6×7 pixel digits
Configurable 12/24-hour time format
Centered on the 32×8 AWTRIX display
Customizable day clock color
Customizable night clock color
Optional blinking colon
Colon blinks once per second when enabled
Configurable Night Mode schedule
Separate day/night brightness
Separate day/night automatic brightness
Optional disabling of app rotation during Night Mode
Supports Night Mode periods crossing midnight
Configurable through the AWTRIX app configuration interface
Designed specifically for AWTRIX 3 Berry scripting

Display
The clock displays the current time using large custom pixel digits:
HH:MM
Example in 24-hour mode:
13:45
Example in 12-hour mode:
01:45
The clock does not display seconds or an AM/PM indicator.
The script uses the AWTRIX draw() loop, so the displayed time updates automatically.

GENERAL

The code contains explanations if you want to change something.
The design of each digit and colon is written in the code and can be changed manually.
Configuration values are exposed through the AWTRIX app configuration interface.
hour_format is handled as a string because it is a select configuration value.
Boolean settings such as blink_colon, night_mode and night_rotation use true / false.

Vibecoded with ChatGPT, polished by Avemer.
And I'm a newbie, hope someone might find this script useful!

RSR2GytEC5Jj.ax

# @name Clock_XL
# @desc Big pixel clock HH:MM with 12/24h format, day/night mode, brightness and rotation control
# @author Avemer
# @version 1.3

# @config blink_colon bool "Blink colon" default=true
# @config hour_format select "Hour format" default=24 options=24,12

# @config clock_color color "Day clock color" default=#FFFFFF
# @config day_brightness slider "Day brightness" default=127 min=1 max=255
# @config day_auto_brightness bool "Day auto brightness" default=false

# @config night_mode bool "Night mode" default=true
# @config night_start text "Night start" default="23:00" maxlen=5
# @config night_end text "Night end" default="08:00" maxlen=5
# @config night_color color "Night clock color" default=#FF0000
# @config night_brightness slider "Night brightness" default=1 min=0 max=255
# @config night_auto_brightness bool "Night auto brightness" default=false
# @config night_rotation bool "Disable rotation at night" default=true


class BigClock


var BLINK_COLON
var HOUR_FORMAT

var CLOCK_COLOR

var NIGHT_MODE_ENABLED
var NIGHT_START
var NIGHT_END
var NIGHT_CLOCK_COLOR

var DAY_BRIGHTNESS
var NIGHT_BRIGHTNESS
var DAY_AUTO_BRIGHTNESS
var NIGHT_AUTO_BRIGHTNESS

var NIGHT_ROTATION_ENABLED

var night_start_m
var night_end_m
var night_mode
var last_night_mode


# INITIALIZATION

def init()

self.BLINK_COLON = store.get("blink_colon")

# Keep hour format as string.
# The select config returns "12" or "24".
self.HOUR_FORMAT = str(store.get("hour_format"))

# Fallback if the saved value is invalid.
if self.HOUR_FORMAT != "12" &&
   self.HOUR_FORMAT != "24"

  self.HOUR_FORMAT = "24"

end


self.CLOCK_COLOR = store.get("clock_color")

self.DAY_BRIGHTNESS = store.get("day_brightness")
self.DAY_AUTO_BRIGHTNESS = store.get("day_auto_brightness")


self.NIGHT_MODE_ENABLED = store.get("night_mode")
self.NIGHT_START = store.get("night_start")
self.NIGHT_END = store.get("night_end")

self.NIGHT_CLOCK_COLOR = store.get("night_color")

self.NIGHT_BRIGHTNESS = store.get("night_brightness")
self.NIGHT_AUTO_BRIGHTNESS = store.get("night_auto_brightness")

self.NIGHT_ROTATION_ENABLED = store.get("night_rotation")


self.night_start_m = self.parse_min(
  self.NIGHT_START,
  23 * 60
)

self.night_end_m = self.parse_min(
  self.NIGHT_END,
  8 * 60
)


self.night_mode = 0
self.last_night_mode = -1

end


# CONVERT HH:MM TO MINUTES

def parse_min(txt, dflt)

var m = re.search(
  "(\\d\\d?):(\\d\\d)",
  str(txt)
)

if m == nil

  return dflt

end


var v =
  num(m[1], 0) * 60 +
  num(m[2], 0)


if v >= 0 && v < 1440

  return v

end


return dflt

end


# UPDATE NIGHT MODE

def update_night_mode()

var night = false


if self.NIGHT_MODE_ENABLED

  var hr = num(hour(), -1)
  var mi = num(minute(), -1)


  if hr < 0 || mi < 0

    return

  end


  var now = hr * 60 + mi


  # Same start and end disables Night Mode.

  if self.night_start_m == self.night_end_m

    night = false


  # Normal interval.

  elif self.night_start_m < self.night_end_m

    if now >= self.night_start_m &&
       now < self.night_end_m

      night = true

    end


  # Interval crosses midnight.

  else

    if now >= self.night_start_m ||
       now < self.night_end_m

      night = true

    end

  end

end


var new_mode = 0

if night

  new_mode = 1

end


# APPLY SETTINGS ONLY WHEN MODE CHANGES

if new_mode != self.last_night_mode

  self.last_night_mode = new_mode
  self.night_mode = new_mode


  # NIGHT MODE

  if self.night_mode == 1

    settings.set(
      "brightness",
      self.NIGHT_BRIGHTNESS
    )

    settings.set(
      "autoBrightness",
      self.NIGHT_AUTO_BRIGHTNESS
    )


    if self.NIGHT_ROTATION_ENABLED

      rotation.show()

    end


  # DAY MODE

  else

    settings.set(
      "brightness",
      self.DAY_BRIGHTNESS
    )

    settings.set(
      "autoBrightness",
      self.DAY_AUTO_BRIGHTNESS
    )


    if self.NIGHT_ROTATION_ENABLED

      rotation.resume()

    end

  end


else

  self.night_mode = new_mode

end


# KEEP ROTATION DISABLED DURING NIGHT

if self.night_mode

  if self.NIGHT_ROTATION_ENABLED

    rotation.pause()

  end

end

end


# MAIN LOOP

def loop()

self.update_night_mode()

end


# DRAW ONE PIXEL

def p(x, y)

var c = self.CLOCK_COLOR


if self.night_mode

  c = self.NIGHT_CLOCK_COLOR

end


pixel(
  x,
  y + 1,
  c
)

end


# DRAW DIGIT

def digit(x, n)


# 0

if n == 0

self.p(x+1,0)
self.p(x+2,0)
self.p(x+3,0)
self.p(x+4,0)

self.p(x,1)
self.p(x+5,1)

self.p(x,2)
self.p(x+5,2)

self.p(x,3)
self.p(x+5,3)

self.p(x,4)
self.p(x+5,4)

self.p(x,5)
self.p(x+5,5)

self.p(x+1,6)
self.p(x+2,6)
self.p(x+3,6)
self.p(x+4,6)


# 1

elif n == 1

self.p(x+1,1)

self.p(x+2,0)
self.p(x+2,1)
self.p(x+2,2)
self.p(x+2,3)
self.p(x+2,4)
self.p(x+2,5)

self.p(x+3,0)
self.p(x+3,1)
self.p(x+3,2)
self.p(x+3,3)
self.p(x+3,4)
self.p(x+3,5)

self.p(x,6)
self.p(x+1,6)
self.p(x+2,6)
self.p(x+3,6)
self.p(x+4,6)
self.p(x+5,6)


# 2

elif n == 2

self.p(x,1)
self.p(x+1,0)
self.p(x+2,0)
self.p(x+3,0)
self.p(x+4,0)

self.p(x+5,1)
self.p(x+5,2)

self.p(x+1,3)
self.p(x+2,3)
self.p(x+3,3)
self.p(x+4,3)

self.p(x,4)
self.p(x,5)

self.p(x,6)
self.p(x+1,6)
self.p(x+2,6)
self.p(x+3,6)
self.p(x+4,6)
self.p(x+5,6)


# 3

elif n == 3

self.p(x,1)
self.p(x+1,0)
self.p(x+2,0)
self.p(x+3,0)
self.p(x+4,0)

self.p(x+5,1)
self.p(x+5,2)

self.p(x+1,3)
self.p(x+2,3)
self.p(x+3,3)
self.p(x+4,3)

self.p(x+5,4)
self.p(x+5,5)

self.p(x,5)

self.p(x+1,6)
self.p(x+2,6)
self.p(x+3,6)
self.p(x+4,6)


# 4

elif n == 4

self.p(x,3)
self.p(x+1,2)
self.p(x+2,1)
self.p(x+3,0)

self.p(x,4)
self.p(x+1,4)
self.p(x+2,4)
self.p(x+3,4)
self.p(x+4,4)
self.p(x+5,4)

self.p(x+4,0)
self.p(x+4,1)
self.p(x+4,2)
self.p(x+4,3)
self.p(x+4,4)
self.p(x+4,5)
self.p(x+4,6)


# 5

elif n == 5

self.p(x,0)
self.p(x+1,0)
self.p(x+2,0)
self.p(x+3,0)
self.p(x+4,0)
self.p(x+5,0)

self.p(x,1)
self.p(x,2)

self.p(x+1,3)
self.p(x+2,3)
self.p(x+3,3)
self.p(x+4,3)

self.p(x+5,4)
self.p(x+5,5)

self.p(x,6)
self.p(x+1,6)
self.p(x+2,6)
self.p(x+3,6)
self.p(x+4,6)


# 6

elif n == 6

self.p(x+1,0)
self.p(x+2,0)
self.p(x+3,0)
self.p(x+4,0)
self.p(x+5,1)

self.p(x,1)
self.p(x,2)
self.p(x,3)
self.p(x,4)
self.p(x,5)

self.p(x+1,3)
self.p(x+2,3)
self.p(x+3,3)
self.p(x+4,3)

self.p(x+5,4)
self.p(x+5,5)

self.p(x+1,6)
self.p(x+2,6)
self.p(x+3,6)
self.p(x+4,6)


# 7

elif n == 7

self.p(x,0)
self.p(x+1,0)
self.p(x+2,0)
self.p(x+3,0)
self.p(x+4,0)
self.p(x+5,0)

self.p(x+5,1)
self.p(x+5,2)
self.p(x+4,3)

self.p(x+3,4)
self.p(x+3,5)
self.p(x+3,6)


# 8

elif n == 8

self.p(x+1,0)
self.p(x+2,0)
self.p(x+3,0)
self.p(x+4,0)

self.p(x,1)
self.p(x+5,1)

self.p(x,2)
self.p(x+5,2)

self.p(x+1,3)
self.p(x+2,3)
self.p(x+3,3)
self.p(x+4,3)

self.p(x,4)
self.p(x+5,4)

self.p(x,5)
self.p(x+5,5)

self.p(x+1,6)
self.p(x+2,6)
self.p(x+3,6)
self.p(x+4,6)


# 9

elif n == 9

self.p(x+1,0)
self.p(x+2,0)
self.p(x+3,0)
self.p(x+4,0)

self.p(x,1)
self.p(x+5,1)

self.p(x,2)
self.p(x+5,2)

self.p(x+1,3)
self.p(x+2,3)
self.p(x+3,3)
self.p(x+4,3)

self.p(x+5,4)
self.p(x+5,5)

self.p(x,5)
self.p(x+1,6)
self.p(x+2,6)
self.p(x+3,6)
self.p(x+4,6)

end

end


# DRAW COLON

def colon(x)

var show_colon = true


if self.BLINK_COLON

  if second() % 2 == 1

    show_colon = false

  end

end


if show_colon

self.p(x,1)
self.p(x+1,1)
self.p(x,2)
self.p(x+1,2)

self.p(x,4)
self.p(x+1,4)
self.p(x,5)
self.p(x+1,5)

end

end


# MAIN CLOCK DRAWING

def draw()

clear()


var h = hour()
var m = minute()


# 12 / 24 HOUR FORMAT

if self.HOUR_FORMAT == "12"

  h = h % 12

  if h == 0

    h = 12

  end

end


# SPLIT HOURS

var h1 = int(h / 10)
var h2 = h % 10


# SPLIT MINUTES

var m1 = int(m / 10)
var m2 = m % 10


# DRAW HOURS

self.digit(0, h1)
self.digit(7, h2)


# DRAW COLON

self.colon(15)


# DRAW MINUTES

self.digit(19, m1)
self.digit(26, m2)

end


# BUTTON

def on_button(btn)
end


end


return BigClock()

Install it on your AWTRIX NG

Your browser writes the script straight to the device on your network. It joins the app rotation right away.

Device address

The hostname or the IP. Your AWTRIX scrolls its IP at boot.

Save it as

Letters, digits, hyphen and underscore.

Some browsers refuse to talk to a device on your network from a public page. Download the flow and paste it into the Scripts tab of your device, or install it from a terminal:

More flows for AWTRIX NG Scripts or Miscellaneous

Something wrong with this flow? Report it.
