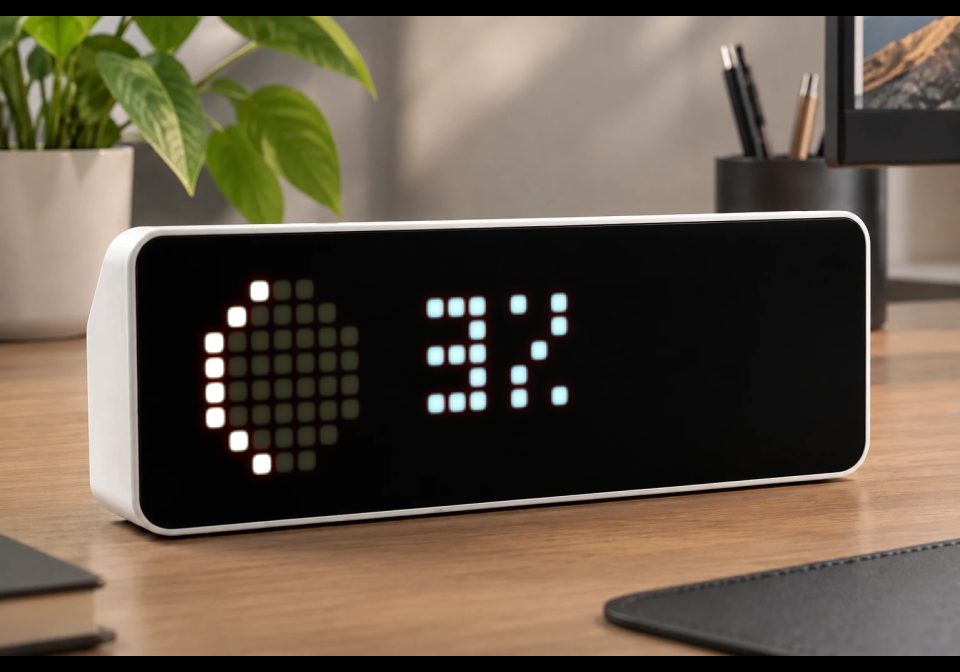

Selenograph
The moon on your wall is the real one.
| System | AWTRIX NG Scripts |
|---|---|
| Firmware | AWTRIX NG |
| Topic | Miscellaneous |
| Built by | Galadril |
| File | KtmQJvoUAgpF.ax · 2.5 KB |
| Icons | — |
| Published | 9 Sep 2026 |
| Downloads | 3 |
For each row of the disc, the shadow boundary sits at w × cos(phase), where w is that row's half-width. That is why the terminator bows outward through the crescents, stands almost straight at the quarters, and swaps limbs the moment the moon passes full, the same geometry that governs the real one, because it is the same equation.
KtmQJvoUAgpF.ax
# @name Selenograph
# @desc Tonight's real moon, worked out from the date alone
# @author Galadril
# @version 1.0
# @config sound bool "Sound" default=false
import math
class Selenograph
var COS,HW,NAME
var phase,pt,txt,base,snd
def init()
self.COS=[1000,981,924,831,707,556,383,195,0,-195,-383,-556,-707,-831,-924,-981,-1000,-981,-924,-831,-707,-556,-383,-195,0,195,383,556,707,831,924,981]
self.HW=[1,2,3,3,3,3,2,1]
self.NAME=["NEW MOON","WAXING CRESCENT","FIRST QUARTER","WAXING GIBBOUS","FULL MOON","WANING GIBBOUS","LAST QUARTER","WANING CRESCENT"]
self.snd=store.get("sound",false)
self.phase=0
self.pt=0
self.base=-1
self.txt=""
end
def _jdn(Y,M,D)
var a=(14-M)/12
var y=Y+4800-a
var m=M+12*a-3
return D+(153*m+2)/5+365*y+y/4-y/100+y/400-32045
end
def _idx()
var Y=year()
if Y<2000
return -1
end
var t=(self._jdn(Y,month(),day())-2451550)*10000+hour()*10000/24-1000
var p=t%295306
if p<0
p+=295306
end
return p*32/295306
end
def _round(steps)
return (steps*2953+1600)/3200
end
def _disc(idx)
var k=self.COS[idx%32]
var y=0
while y<8
var w=self.HW[y]
var t=w*k/1000
var dx=-w
while dx<=w
var lit=false
if idx==16
lit=true
end
if idx>0
if idx<16
if dx>t
lit=true
end
end
end
if idx>16
if dx<(0-t)
lit=true
end
end
var c=0x241F14
if lit
c=0xF2E3C8
end
pixel(4+dx,y,c)
dx+=1
end
y+=1
end
end
def on_button(b)
if b!="select"
return
end
var idx=self._idx()
if idx<0
return
end
var ill=(1000-self.COS[idx%32])*100/2000
var df=self._round((16-idx+32)%32)
var dn=self._round((32-idx)%32)
var ev="NEXT FULL MOON IN "+str(df)+" DAYS"
if dn<df
ev="NEXT NEW MOON IN "+str(dn)+" DAYS"
end
self.txt=self.NAME[((idx+2)%32)/4]+" "+str(ill)+"% ILLUMINATED "+ev
self.base=-1
self.phase=2
end
def duration()
return 15000
end
def draw()
clear()
var now=now_ms()
var idx=self._idx()
if idx<0
var w="NO CLOCK"
text((width()-text_ink_width(w))/2,6,w,0x9AA0A6)
return
end
if self.phase==2
var laps=scroll_text(self.txt,0xF2E3C8)
if self.base<0
self.base=laps
else
if laps>self.base
self.phase=0
self.pt=now
end
end
return
end
self._disc(idx)
var df=self._round((16-idx+32)%32)
var dn=self._round((32-idx)%32)
var ev="FULL"
var d=df
if dn<df
ev="NEW"
d=dn
end
var s=str((1000-self.COS[idx%32])*100/2000)+"%"
if self.phase==1
s=ev
end
if self.phase==2
s=str(d)+"D"
if d==0
s="NOW"
end
end
text(10,6,s,0x9AA0A6)
if now-self.pt>2200
self.pt=now
self.phase=(self.phase+1)%3
end
end
end
return Selenograph()
Install it on your AWTRIX NG
Your browser writes the script straight to the device on your network. It joins the app rotation right away.
Some browsers refuse to talk to a device on your network from a public page. Download the flow and paste it into the Scripts tab of your device, or install it from a terminal:
