blueprint:
  name: 🏈 AWTRIX NG – NFL Scoreboard
  author: Hank_the_Tank / AWTRIX NG migration
  description: >-

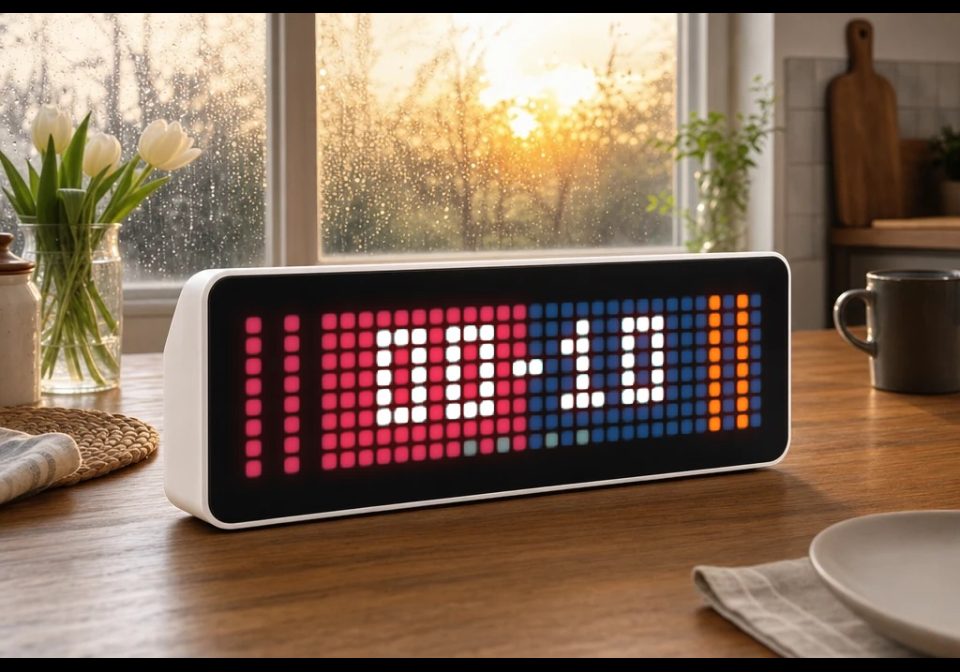

    # NFL Scoreboard for AWTRIX NG ver. 1.0

    Displays the live score of an NFL game from a HACS Team Tracker sensor.
    The home and away sides use their team colors, while four pixels along the
    bottom show the current quarter. During overtime, all quarter pixels turn
    amber. The pushed app is removed automatically when the game is no longer
    live.

    ## Requirements

    - Home Assistant 2024.11 or newer
    - MQTT integration
    - AWTRIX NG with Home Assistant discovery enabled
    - HACS Team Tracker integration

  domain: automation

  input:
    awtrix_devices:
      name: AWTRIX NG devices
      description: Select one or more AWTRIX NG devices.
      selector:
        device:
          multiple: true
          filter:
            - integration: mqtt
              manufacturer: Blueforcer
              model: AWTRIX NG

    app_name:
      name: AWTRIX app name
      description: >-
        Unique pushed-app name. Use only letters, numbers, underscores and
        hyphens, with a maximum length of 32 characters.
      default: nfl_team_score
      selector:
        text:

    message_duration:
      name: Display duration
      description: How long the scoreboard remains visible per rotation.
      default: 15
      selector:
        number:
          min: 0
          max: 300
          step: 1
          mode: box
          unit_of_measurement: s

    team_sensor:
      name: Team Tracker sensor
      description: Select the Team Tracker sensor for your NFL team.
      selector:
        entity:

mode: restart

triggers:
  - trigger: state
    entity_id: !input team_sensor
    id: game_state

  - trigger: state
    entity_id: !input team_sensor
    attribute: team_score
    id: game_update

  - trigger: state
    entity_id: !input team_sensor
    attribute: opponent_score
    id: game_update

  - trigger: state
    entity_id: !input team_sensor
    attribute: quarter
    id: game_update

variables:
  device_ids: !input awtrix_devices
  app_name: !input app_name
  team_sensor: !input team_sensor
  message_duration: !input message_duration

  mqtt_prefixes: >-
    {% set ns = namespace(prefixes=[]) %}
    {% for device_id in device_ids %}
      {% set entities = device_entities(device_id)
        | select('search', 'mqtt_prefix') | list %}
      {% if entities | length > 0 %}
        {% set prefix = states(entities[0]) | trim %}
        {% if prefix not in ['', 'unknown', 'unavailable'] %}
          {% set ns.prefixes = ns.prefixes + [prefix] %}
        {% endif %}
      {% endif %}
    {% endfor %}
    {{ ns.prefixes | unique | list }}

  home_game: "{{ state_attr(team_sensor, 'team_homeaway') == 'home' }}"

  team_colors: >-
    {% set colors = state_attr(team_sensor, 'team_colors') or [] %}
    {% if colors | length >= 2
          and (colors[0] | lower) in ['#000000', '000000']
          and (colors[1] | lower) in ['#000000', '000000'] %}
      {{ ['#404040', '#FFFFFF'] }}
    {% elif colors | length > 0 %}
      {{ colors }}
    {% else %}
      {{ ['#404040', '#FFFFFF'] }}
    {% endif %}

  opponent_colors: >-
    {% set colors = state_attr(team_sensor, 'opponent_colors') or [] %}
    {% if colors | length >= 2
          and colors[0] | lower in ['#000000', '000000']
          and colors[1] | lower in ['#000000', '000000'] %}
      {{ ['#404040', '#FFFFFF'] }}
    {% elif colors | length > 0 %}
      {{ colors }}
    {% else %}
      {{ ['#404040', '#FFFFFF'] }}
    {% endif %}

  home_colors: "{{ team_colors if home_game else opponent_colors }}"
  away_colors: "{{ opponent_colors if home_game else team_colors }}"

  home_color_1: >-
    {{ home_colors[0] if home_colors | length > 0 else '#404040' }}
  home_color_2: >-
    {{ home_colors[1] if home_colors | length > 1 else '#FFFFFF' }}
  away_color_1: >-
    {{ away_colors[0] if away_colors | length > 0 else '#404040' }}
  away_color_2: >-
    {{ away_colors[1] if away_colors | length > 1 else '#FFFFFF' }}

  home_score_number: >-
    {{ (state_attr(team_sensor, 'team_score') if home_game
        else state_attr(team_sensor, 'opponent_score')) | int(0) }}
  away_score_number: >-
    {{ (state_attr(team_sensor, 'opponent_score') if home_game
        else state_attr(team_sensor, 'team_score')) | int(0) }}
  home_score: "{{ '%02d' | format(home_score_number | int(0)) }}"
  away_score: "{{ '%02d' | format(away_score_number | int(0)) }}"

  quarter: "{{ state_attr(team_sensor, 'quarter') | int(0) }}"
  quarter_draw: >-
    {% set inactive = '#707070' %}
    {% set active = '#FFB000' if quarter | int > 4 else '#FFFFFF' %}
    {{ [
      ['pixel', 12, 7, active if quarter | int >= 1 else inactive],
      ['pixel', 14, 7, active if quarter | int >= 2 else inactive],
      ['pixel', 17, 7, active if quarter | int >= 3 else inactive],
      ['pixel', 19, 7, active if quarter | int >= 4 else inactive]
    ] }}

conditions: []

actions:
  - repeat:
      for_each: "{{ mqtt_prefixes }}"
      sequence:
        - choose:
            - conditions:
                - condition: template
                  value_template: "{{ is_state(team_sensor, 'IN') }}"
              sequence:
                - action: mqtt.publish
                  data:
                    qos: 0
                    retain: false
                    topic: >-
                      {{ repeat.item ~ '/cmd/apps/pushed/' ~ app_name }}
                    payload: >-
                      {{
                        {
                          'draw': [
                            ['rectFill', 0, 0, 16, 8, home_color_1],
                            ['rectFill', 16, 0, 16, 8, away_color_1],
                            ['line', 1, 0, 1, 7, home_color_2],
                            ['line', 3, 0, 3, 7, home_color_2],
                            ['line', 28, 0, 28, 7, away_color_2],
                            ['line', 30, 0, 30, 7, away_color_2],
                            ['text', 7, 1, home_score, '#FFFFFF'],
                            ['text', 18, 1, away_score, '#FFFFFF'],
                            ['line', 15, 3, 16, 3, '#FFFFFF']
                          ] + quarter_draw,
                          'durationMs': (message_duration | int) * 1000
                        } | to_json
                      }}

                - action: mqtt.publish
                  data:
                    qos: 0
                    retain: false
                    topic: "{{ repeat.item ~ '/cmd/apps/switch' }}"
                    payload: >-
                      {{ {'name': app_name, 'fast': true} | to_json }}

          default:
            - action: mqtt.publish
              data:
                qos: 0
                retain: false
                topic: >-
                  {{ repeat.item ~ '/cmd/apps/pushed/' ~ app_name }}
                payload: ""

mode: restart
